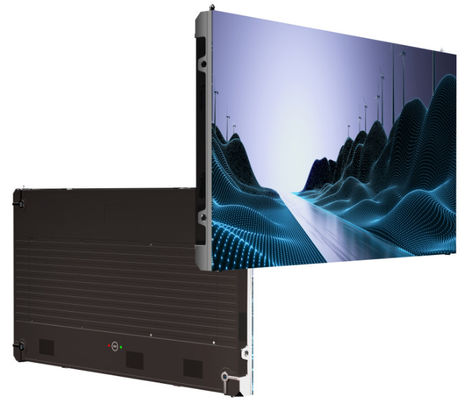

P0.9 Small Pixel Pitch Display COB With 600x337.5mm Cabinet For Street Advertising
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P0.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Pixel Pitch: | P0.7/P0.9/P1.2 | Refresh Rate: | ＞3840Hz |
|---|---|---|---|
| Brightness: | 600-800nits | Durability: | 100000 Hours |
| Cabinet Material: | Die-casting Aliuminum | Display Type: | LED |
| Size: | 600x337.5mm | Maintenance: | Front/Rear Service |
| High Light: | Street Advertising Small Pixel Pitch Display,COB Small Pixel Pitch Display,P0.9 Small Pixel Pitch Display |
||
Product Description
P0.9 Small Pixel Pitch Display COB with 600x337.5mm Cabinet for Street Advertising
Product Description:
The XMETA i series LED panels is a high-performance visualization LED display that is optimized for high-definition and high-resolution applications. With its 6000K adjustable color temperature, 600x337.5mm size and wall mounted/stacking/rack installation options, this LED display is perfect for creating stunning and vivid visuals. It also offers full front access for easy maintenance. The Fine Pixel Pitch LED Display is designed to be the perfect solution for any application requiring high-quality visuals and reliable performance.
Features:
- Full flip-chip COB process, protection technology includes: anti-collision, waterproof, moisture-proof, salt spray.
- The module adopts 3D ink printing technology, which increases the contrast by 20% and reduces the requirements for display brightness.
- Supports LCD status display panel, which can intuitively understand the real-time status of the cabinet operation.
- The module PCB adopts HDI multi-layer circuit board design, with good color uniformity and uniform temperature distribution.
- The entire series adopts Sunrise's energy-saving common cathode chip, which has higher performance and a grayscale level of up to 16bit.
Technical Parameters:
|
Product Model: |
P0.7 |
P0.9 |
P1.2 |
|
Pixel Pitch: |
0.7 mm |
0.9 mm |
1.2 mm |
|
LED package type |
Flip chip technology |
Flip chip technology |
Flip chip technology |
|
Cabinet Dimension: |
600×337.5x35 mm |
600×337.5x35 mm |
600×337.5x35 mm |
|
Cabinet Weight: |
4.6kg |
4.6kg |
4.6kg |
|
Cabinet Material: |
Die-casting Aluminum |
Die-casting Aluminum |
Die-casting Aluminum |
|
Brightness: |
>600 nits |
>600 nits |
>600 nits |
|
Max/Avg Power: |
420/65 W/sqm |
395/55 W/sqm |
395/55 W/sqm |
|
Maintenance: |
Front/Rear service |
Front/Rear service |
Front/Rear service |
|
Environment: |
Indoor Use |
Indoor Use |
Indoor Use |
|
IP Rating: |
F: IP30, R: IP45 |
F: IP30, R: IP45 |
F: IP30, R: IP45 |
|
Refresh Rate: |
>3840 Hz |
>3840 Hz |
>3840 Hz |
|
Installation Type: |
Mounting/Hanging |
Mounting/Hanging |
Mounting/Hanging |
|
Gray Scale: |
16 bit |
16 bit |
16 bit |
|
Viewing Angle: |
H:170°；V:170° |
H:170°；V:170° |
H:160°；V:160° |
|
Operational Temp: |
-20℃~+50℃ |
-20℃~+50℃ |
-20℃~+50℃ |
|
Operational Humidity: |
10%~90% RH |
10%~90% RH |
10%~90% RH |
Applications:
Advertising publish / retail store / shopping mall / display of dishes / welcome display / self-service business / exhibition hall / airport / subway / elevator / restaurant & hotel supplies / education / medical treatment /
Our professional experience:
We are a trade factory in Shenzhen with 10 years experience. There are professional develop engineers, experienced sales engineers, and skillful workers.
1. If you want to develop a new design LED screen, please contact us. We can help you.
2. If you have a new project/order but don't know how to process it, please contact us. We can help provide the best solutions/scheme, and guide you.
3. If you are searching for alternative suppliers, please contact us. We are professional.
FAQ:
1. Is the product customizable?
Yes, we can customize the product according to customers' requirement, you just need to provide the project details.
2. What is your terms delivery?
EXW, FOB, CFR, CIF, DDP, DDU...
3. Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
4. What certificates can you provide?
CE, RoHS, FCC, ETL, CB.
