P4 Indoor Flexible LED Display Screen Front Service 960×720mm Simple Steel Cabinet
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | flight case, plywood box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 1100sqm/month |
|
Detail Information |
|||
| IP Rating: | IP20 | Gray Scale: | 12 Bit |
|---|---|---|---|
| Pixel Pitch: | 4mm | Driving Method: | 1/15 |
| Maintenance: | Front Service | Cabinet Dimension: | 960×720mm |
| Installation Type: | Mounting/Hanging | Viewing Angle: | H:140°；V:140° |
| Highlight: | 960×720mm Flexible LED Display Screen,Front Service Flexible LED Display Screen,P4 Indoor Flexible LED Display Screen |
||
Product Description
960×720mm Simple Steel Cabinet P4 Indoor Flexible LED Display Screen Front Service
Product Description:

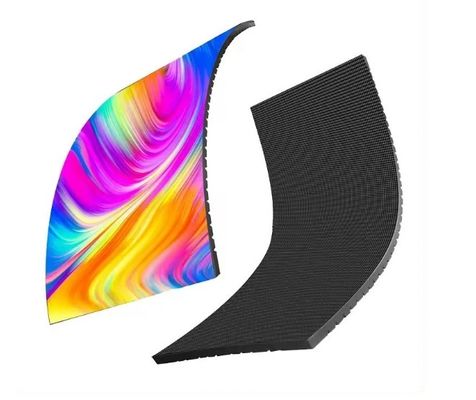

P4 Indoor Flexible LED Display Screen can fit the metal frame with different camber surfaces due to the soft characteristics of its PCB, thus realizing the LED display effect of curved surfaces. Different pictures and video content can be played, which makes the soft module very well applied in creative design and urban beautification.
Product Quick Details:
- Space-saving compact design saves space and labor costs;
- Flexible features, easy installation and adaptable to different building structures;
- Highly customizable features with a wide range of customization options for size, shape, and pixel pitch;
- Highly maneuverable - easy to install, dismantle, fold, store and transport.
Features:
- Flexible:Soft pcb design, can be curved, flexible installation
- Curved:Curved angle from 110° to 180°, inner and outer curved
- Multi-shapes available:Flexible modules work for round, convex, concave, s shapes and other irregular shapes.
- Magnetic front service:Completely front service with magnets on the modules. Safety rope can be added to the module for hanging or high installation position.
Technical Parameters:
| Technical Parameters | Flexible LED Display Screen |
| Pixel Pitch: | 4 mm |
| LED Type: | SMD2121 |
| Cabinet Dimension: | 960×720mm |
| Module Size: | 240x120 mm |
| Cabinet Weight: | 19kg |
| Cabinet Material: | Simple Steel |
| Driving Type: | 1/15 |
| Brightness: | 800-1000nits |
| Max/Avg Power: | 800/280 W/m2 |
| Maintenance: | Front service |
| IP Rating: | IP20 |
| Refresh Rate: | >1920 Hz |
| Installation Type: | Mounting/Hanging |
| Gray Scale: | 12 bit |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -20℃~+50℃ |
| Operational Humidity: | 10%~90% RH |
Case:
FAQ:
Q1. How can I place an order?
A1:Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, incase of any delays.
Q2. What kind of display we provide?
We have indoor/outdoor/rental taxi top /mobile LED display/LED stage/Irregular LED display for you choose.
Q3. Are you manufacturer of LED display. If yes, in which city?
A3:Yes, Our factory with 2000 square meters. And we're in SHENZHEN city, GUANGDONG Province.
Q4. How long can I get the goods?
A4:Our produce time is about 10-25 working days. When you confirmed the order, we can start production after receiving your deposit(30% TT in advance). We will update the production details in time. We will notice you that we can delivery the goods to you after we get full payment.
Q5. May I know the package details?
A5:For fixed installation, we use wooden case, usually 2 or 4 cabinets in 1 wooden case;
For rental market, we suggest you use flight case, generally 8 cabinets in one flight case.
It's safe to protect the screen on the way, also economical.
Q6. What is the payment method?
A6:We support a variety of payment methods, the most common is the TT.
Q7. What's the pixel pitch for Outdoor LED Display Screen?
A7:Outdoor (p3.91mm/p4.81/p5mm/P6mm/ p6.25 /p6.67/ P8mm/P10mm/p16mm/p20mm) LED display screen
Q8. Can it play HD video?
A8:Yes, it can realize HD video function with Linsn/nova controlling system
Q9. What's the controlling system?
A9Our standard controlling system for this model is Linsn/ Novastar. Also support other controlling system, like Xixun, TF, Colorlight, etc.
Q10. What's the difference between DIP(1R1G1B) and sSMD(One LED, 3 in 1)?
A10:SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 LED chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.
SMD(One LED), reduced the LED on the screens, it reduced grainy of the screen, and improve the uniform of the screen, this will make the screen have a more wide viewing angle and smooth image. With the technology advanced and SMD brightness improved, SMD is more and more used outdoor.
Q11. What is your terms of delivery?
A11:We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
