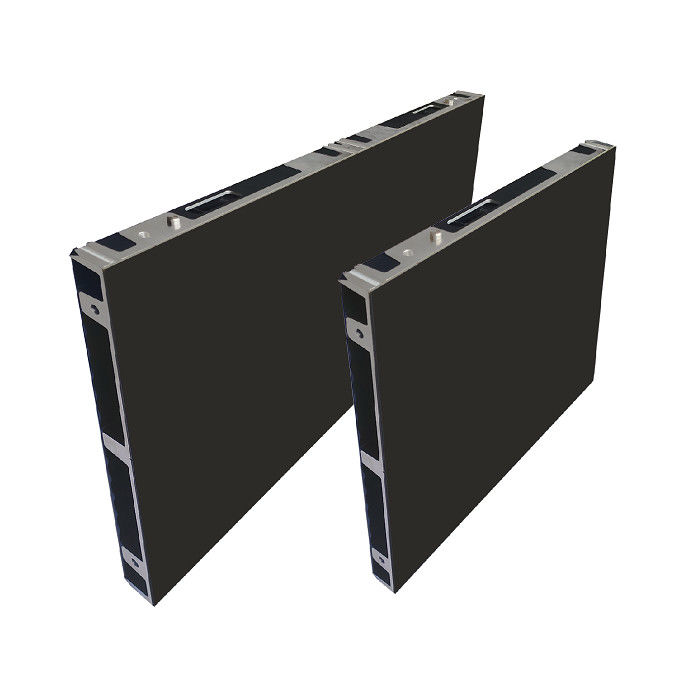

P1.875 Indoor Small Pixel Pitch LED Display 600x337.5mm Die-casting Aliuminum Cabinet
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.875 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Pixel Pitch: | P0.9375, P1.25, P1.56, P1.875 | Refresh Rate: | ＞3840Hz |
|---|---|---|---|
| Brightness: | 600-800nits | Durability: | 100000 Hours |
| Cabinet Material: | Die-casting Aliuminum | Display Type: | LED |
| Size: | 600x337.5mm | Maintenance: | Front Service |
| Highlight: | Die-casting Aliuminum Cabinet LED Display,Indoor Small Pixel Pitch LED Display,P1.875 Indoor LED Display |
||
Product Description
P1.875 Indoor Small Pixel Pitch LED Display 600x337.5mm Die-casting Aliuminum Cabinet
PRODUCT DESCRIPTION
P1.875 Indoor Small Pixel Pitch LED Display is an ultra-high definition LED display that delivers stunning visual effects with its high-density pixel pitch technology. This fine pixel pitch LED display is designed to provide a superior viewing experience for various applications, from corporate events and advertising to concerts and sports events.
FEATURES
- Refresh Rate:
This LED display has a refresh rate of over 3840Hz , ensuring smooth and flicker-free display of fast-moving images and videos.
- Pixel Pitch:
The Fine Pixel Pitch LED Display is available in P0.9375, P1.25, P1.56, and P1.875 pixel pitch options, allowing you to choose the perfect display for your specific needs.
- Installation:
This LED display can be easily wall mounted or hung for versatile installation options, making it suitable for a variety of indoor applications.
- Maintenance:
The Fine Pixel Pitch LED Display features front service design, allowing for easy and convenient maintenance without the need for specialized tools or equipment.
- Size:
With a compact and slim design, the Fine Pixel Pitch LED Display has a size of 600x337.5mm , making it suitable for installations where space is limited.
TECHNICAL SPECIFICATIONS
|
Product Model: |
P1.25 |
P1.56 |
P1.875 |
|
Pixel Pitch: |
1.25 mm |
1.5625 mm |
1.875mm |
|
LED Type: |
SMD1212 |
SMD1212 |
SMD1515 |
|
Cabinet Dimension: |
600×337.5x58 mm |
600×337.5x58 mm |
600×337.5x58 mm |
|
Module Size: |
300x168.75mm |
300x168.75mm |
300x168.75mm |
|
Cabinet Weight: |
5.5 kg/sqm |
5.5 kg/sqm |
5.5 kg/sqm |
|
Cabinet Material: |
Die-casting Aluminum |
Die-casting Aluminum |
Die-casting Aluminum |
|
Driving Type: |
1/45 |
1/48 |
1/45 |
|
Brightness: |
>600 nits |
>600 nits |
>600 nits |
|
Max/Avg Power: |
450/135 W/sqm |
450/135 W/sqm |
450/135 W/sqm |
|
Maintenance: |
Front service |
Front service |
Front service |
|
Environment: |
Indoor Use |
Indoor Use |
Indoor Use |
|
IP Rating: |
F: IP30, R: IP45 |
F: IP30, R: IP45 |
F: IP30, R: IP45 |
|
Refresh Rate: |
>3840 Hz |
>3840 Hz |
>3840 Hz |
|
Installation Type: |
Mounting/Hanging |
Mounting/Hanging |
Mounting/Hanging |
|
Gray Scale: |
14 bit |
14 bit |
14 bit |
|
Viewing Angle: |
H:140°；V:140° |
H:140°；V:140° |
H:140°；V:140° |
|
Operational Temp: |
-20℃~+50℃ |
-20℃~+50℃ |
-20℃~+50℃ |
|
Operational Humidity: |
10%~90% RH |
10%~90% RH |
10%~90% RH |
APPLICATION
- Advertising and marketing displays
- Corporate events and conferences
- Concerts and live performances
- Sports events and stadiums
- Control rooms and command centers
- Retail stores and shopping malls
- Museums and galleries
- And more!
PACKING AND SHIPPING
Packaging
The Fine Pixel Pitch LED Display is first wrapped in a protective layer of bubble wrap to prevent any damage during transportation. It is then placed in a sturdy cardboard box with foam padding to provide additional protection.
The box is then sealed and labeled with the product name, model number, and shipping information.
Shipping
We offer multiple shipping methods to ensure timely and secure delivery of our Fine Pixel Pitch LED Display.
For domestic orders, we use reliable courier services such as FedEx, UPS, and DHL. For international orders, we use air or sea freight depending on the customer's preference and location.
Our team carefully tracks and monitors the shipment until it reaches its final destination.
Upon arrival, the Fine Pixel Pitch LED Display is inspected and tested to ensure it is in perfect working condition before being delivered to the customer.
FAQ
Q1. Can I have a sample order for LED display?
A1: Yes, we welcome sample order to test and check quality. Both for module or whole screen.
Q2. What about the lead time?
A2:Order less than 100 square meter led time take 15 working days
Q3. Do you have any MOQ limit for LED display order?
A3: Low MOQ, 1 square meter or a moudle checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A4: We mostly accectp FOB train term, but we can help you order and arrange shipping agent. It usually take 20 30 day on sea. a few days for customer clearance
Q5. How to proceed an order for LED display?
A5: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the products?
A6: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A7: Yes, we offer 1 years warranty to our products
Q8: How to deal with the faulty?
A8: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new module with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
