RGBW Transparent LED Mesh Screen Outdoor Flexible IP67 Dustproof

RGBW Transparent LED Mesh Screen Outdoor Flexible IP67 Dustproof

Product Details:

Place of Origin: China
Brand Name: VW
Certification: EMC,CE,FCC,ROHS
Model Number: P30,P40,P50,P60,P80,P110

Payment & Shipping Terms:

Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Plywood case, export carton box
Delivery Time: 3-6 work days
Payment Terms: T/T
Supply Ability: 1000sqm per month
Get Best Price Contact Now

Detail Information

Pixel Pitch: P30,P40,P50,P60,P80,P110 LEDs Type: SMD2727/SMD3535
IP Level: IP67 Brightness: 500-5000nits
Transparent Rate: 90% Control Type: DMX512
Voltage: DC12v Color: RGBW
High Light:

LED Mesh Screen Outdoor IP67

,

Transparent LED Mesh Screen Outdoor

,

Dustproof transparent led mesh

Product Description

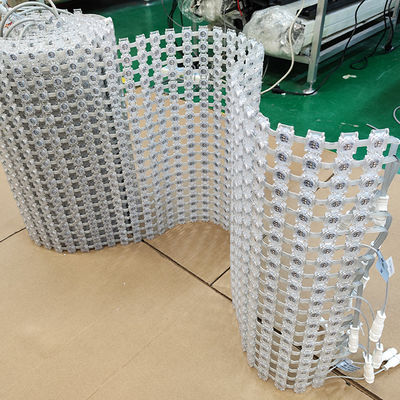

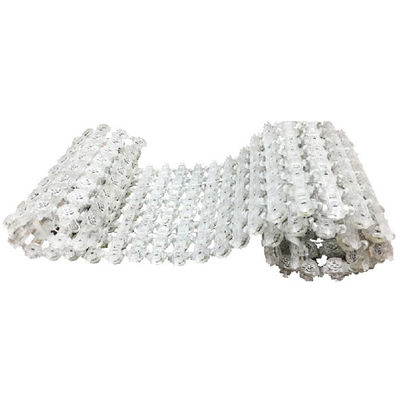

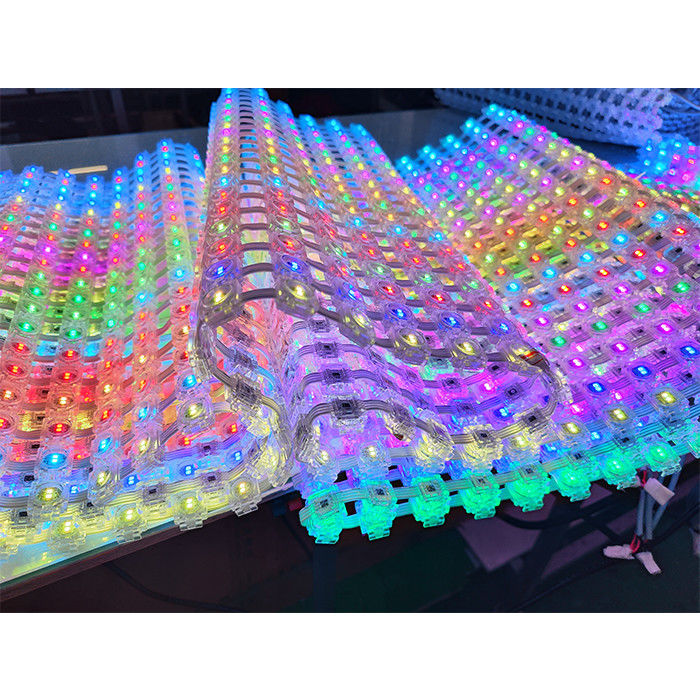

Outdoor LED Mesh Screen Flexible Transparent Mesh LED Display Pixel Light



Outdoor LED mesh screen display / flexible installation / IP67 high protection level, waterproof and anti-salt, can be installed seaside / High brightness and low power consumption / Light weight



FEATURES



  • HIGH INGRESS PROTECTION

IP67, waterproof and dustproof.

  • HIGH TRANSPARENCY

Unparalleled transparency, the transparent rate could be from 90%.

  • FLEXIBLE

​Pure gold wire LED lamp, The brightness can be over 10000nits.

  • FLEXIBLE

Soft mesh design, suitable for multiple installation methods.

  • GOOD HEAT DISSIPATION

Independent power box design, good heat dissipation.

  • LIGHT WEIGHT

Only around 8kg/sqm, save shipping cost.

  • EASY INSTALLATION AND MAINTENANCE

Quick installation and maintenance, reduce labor cost.



TECHNICAL SPECIFICATIONS



Product Model: P30 P40 P50
Pixel Pitch: 30 mm 40 mm 50 mm
LED Type: SMD2727/SMD3535 SMD2727/SMD3535 SMD2727/SMD3535
Color: RGBW RGBW RGBW
LEDs Quantity: 1-4pcs 1-4pcs 1-4pcs
Voltage: DC12V DC12V DC12V
Material: Transparent flame-retardant PC Transparent flame-retardant PC Transparent flame-retardant PC
Control Type: DMX512 DMX512 DMX512
Brightness: >4000 nits >2300 nits >1600 nits
Power Consumption: 0.2-0.5W/pixel 0.2-0.5W/pixel 0.2-0.5W/pixel
Maintenance: Front or Rear service Front or Rear service Front or Rear service
Environment: Outdoor Use Outdoor Use Outdoor Use
IP Rating: F: IP67, R: IP67 F: IP67, R: IP67 F: IP67, R: IP67
Refresh Rate: >3840 Hz >3840 Hz >3840 Hz
Installation Type: Mounting/Hanging Mounting/Hanging Mounting/Hanging
Gray Scale: 14 bit 14 bit 14 bit
Viewing Angle: H:120°;V:120° H:120°;V:120° H:120°;V:120°
Operational Temp: -40℃~+60℃ -40℃~+60℃ -40℃~+60℃
Operational Humidity: 10%~90% RH 10%~90% RH 10%~90% RH



DRAWING



Outdoor 1000x250mm Mesh LED Display.



RGBW Transparent LED Mesh Screen Outdoor Flexible IP67 Dustproof 0



LED mesh screen outdoor P30mm, P40mm,P50mm,P60mm,P80mm,P100mm



RGBW Transparent LED Mesh Screen Outdoor Flexible IP67 Dustproof 1



INSTALLATION



RGBW Transparent LED Mesh Screen Outdoor Flexible IP67 Dustproof 2

CONTROL SYSTEM

RGBW Transparent LED Mesh Screen Outdoor Flexible IP67 Dustproof 3



APPLICATION



RGBW Transparent LED Mesh Screen Outdoor Flexible IP67 Dustproof 4



FAQ:



1. Q: Are you a manufacturer or trading company?

A: We are LED manufacturer, OEM & ODM optional, multi-solutions provider, more than 10 years experience in LED industry! What’s more, Visual World is a modern factory dedicated to applying artificial intelligence to the LED industry.



2. Q: How about the warranty?

A: We provide at least 2 years warranty, and some products can be 5 years warranty. Even after the warranty, we can still repair product for free, you just need to pay for the shipping cost.



3. Q: Can you customize my logo on LED display?

A: Of course, we can print your logo on PCB and LED Cabinet if you need. Thus you will keep your own brand.
