P4.8 Outdoor Fixed LED Display 500X1000mm Aluminum profile IP65 19.5kg
Подробная информация о продукте:
| Место происхождения: | CN |
| Фирменное наименование: | VW |
| Сертификация: | CE, ROHS, EMC |
| Номер модели: | P3.9 |
Оплата и доставка Условия:
| Количество мин заказа: | Вести переговоры |
|---|---|
| Цена: | Negotiate |
| Упаковывая детали: | Фанерный корпус |
| Время доставки: | 15 рабочих дней |
| Условия оплаты: | T/T, L/C. |
| Поставка способности: | 2000 кв. М/месяц |
|
Подробная информация |
|||
| Название продукта: | P4.8 Стояльный дисплей с фиксированным светодиодом 500x1000 мм алюминиевый профиль IP65 19,5 кг | Пиксельный шаг: | 3,91 мм |
|---|---|---|---|
| Вес шкафа: | 19,5 кг/кабинет | Размер модуля: | 500*250*14 мм |
| Размер шкафа: | 500*1000*87 мм | Яркость: | 7500CD/м² |
| IP -рейтинг: | IP65 | Обслуживание: | Спереди/назад |
| Выделить: | P4.8 outdoor LED display,500x1000mm fixed LED screen,IP65 aluminum LED display |
||
Характер продукции
P4.8 Outdoor Fixed LED Display 500X1000mm Aluminum profile IP65 19.5kg
Product Description:

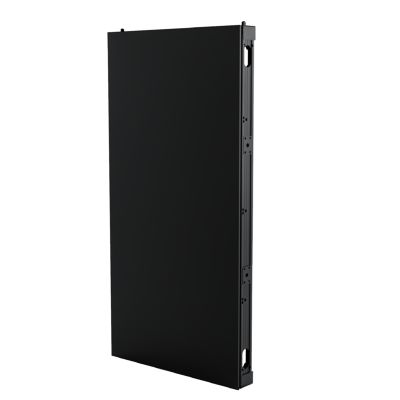

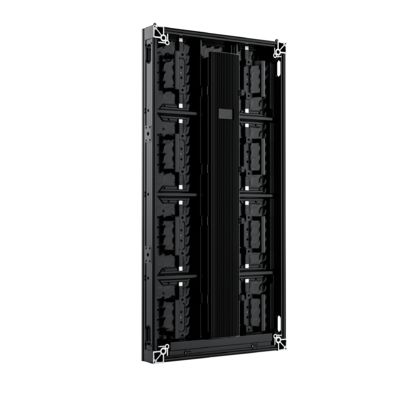

High-precision aluminum profile cabinet is only 87mm thick/19.5kg (500×1000mm),500×1000mm and 500×750mm cabinets are free to mix and match shaped shapes, sharing the same type of control box. Push-button lock realizes 5 seconds fast disassembly and assembly, optional arc lock supports curved surface splicing. Fanless ≤ 40dB silent operation, point-by-point calibration to ensure pixel-level uniformity. 3840Hz high refresh to eliminate 1/3000s shutter residual shadow, for stage performances, conferences, to provide a broadcaster-level visual base.
Features:
- Point By Point Calibration: Fine-tune the white balance of each lamp bead point by point to eliminate chromatic aberration and light spots, achieve pixel-level display consistency.
- Work In Silence: Fanless silent design, working noise ≤ 40dB (A) ambient sound level.
- Installation And Maintenance: Optional curved locks for 10°~15° and 90° angles; modular push-button locks for 5-second quick assembly and disassembly; optional magnetic modules to support front service & rear service, efficient and convenient assembly and disassembly.
- Cabinets Design: The 500x1000mm and 500x750mm cabinets can be mixed and assembled into a variety of shapes; sharing a simple mini control box saves installation and calibration time.
Technical Parameters:
| Item | Specification Parameter |
Specification Parameter |
Specification Parameter |
Specification Parameter |
| PixelPitch | 3.91mm | 4.81mm | 6.94mm | 10.41mm |
| Resolution rate | 128*64mm | 104*52mm | 72*36mm | 48*24mm |
| Module Size | 500*250*14mm | 500*250*14mm | 500*250*14mm | 500*250*14mm |
| Pixel LED | SMD1921 Black led | SMD1921 Black led | SMD2727 Black led | SMD2727 Black led |
| Module Power | ≤74W | ≤60W | ≤60W | ≤60W |
| Driving IC | ICN2055 | ICN2055 | ICN2055 | ICN2055 |
| Drivingway | 1/8 | 1/13 | 1/6 | 1/2 |
| Material | Aluminum profile | Aluminum profile | Aluminum profile | Aluminum profile |
| Cabinet Weight (kg/Cabinet) |
19.5kg | 19.5kg | 19.5kg | 19.5kg |
| Resolution rate | 128*256Dots | 128*208Dots | 72*144Dots | 48*96Dots |
| Cabinet Size | 500*1000*87mm | 500*1000*87mm | 500*1000*87mm | 500*1000*87mm |
| Module quantity | 1*4 | 1*4 | 1*4 | 1*4 |
| Density | 65536 Dots/㎡ | 43264 Dots/㎡ | 20736 Dots/㎡ | 9216 Dots/㎡ |
| Brightness | 7500CD/m² | 7500CD/m² | 7500CD/m² | 7500CD/m² |
| View Angel | H/V:120°/120° | H/V:120°/120° | H/V:120°/120° | H/V:120°/120° |
| Maximal power/㎡ | ≤650W/㎡ | ≤520W/㎡ | ≤520W/㎡ | ≤520W/㎡ |
| Average Power/㎡ | ≤220W/㎡ | ≤160W/㎡ | ≤160W/㎡ | ≤160W/㎡ |
| Refresh Frequency | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Gray Grade | ≥13bit | ≥13bit | ≥13bit | ≥13bit |
| Protection grade | IP65 | IP65 | IP65 | IP65 |
| Maintenance | Front/Back | Front/Back | Front/Back | Front/Back |
Application:
- Outdoor creative modeling
- Building entrance
- Park entrance
- Swimming pool
FAQ
A1:Can you provide OEM/ODM service?
Q1:Yes,well supported.We can customize it according to your requests.
A2:How long for the warranty?
Q2:1-3 year warranty, lifetime free upgrade.
A3:Is your company a real manufacturer?
Q3:Yes, we are a factory with more than 10 years of production experience. You are welcome to visit us.
A4: How is the quality of the product?
Q4: Quality management is the cornerstone of an enterprise,and we will strictly control product quality to provide customers with high-quality services.
Q5:What's your after-sale service?
A5:lf any problems, you will get our reply within 24 hours. Solution will be offered instantly.
Q6:Can the product system be customized with models?
A6: Yes, support customization.
