P8 Adhesive Transparent LED Display 1000*240mm 80% High Transparency UV Resistance
جزئیات محصول:
| محل منبع: | CN |
| نام تجاری: | VW |
| گواهی: | CE, ROHS, EMC,FCC |
| شماره مدل: | TP8 |
پرداخت:
| مقدار حداقل تعداد سفارش: | مذاکره کردن |
|---|---|
| قیمت: | Negotiate |
| جزئیات بسته بندی: | جعبه کارتن صادرات ، تخته سه لا |
| زمان تحویل: | 10-20 روز کاری |
| شرایط پرداخت: | t/t |
| قابلیت ارائه: | 2000 متر مربع در ماه |
|
اطلاعات تکمیلی |
|||
| نام محصول: | صفحه نمایش LED شفاف چسبنده P8 1000*240mm 80 ٪ مقاومت در برابر اشعه ماوراء بنفش بالا | پیکسل: | P6/P8/P10 |
|---|---|---|---|
| روشنایی: | 1500-3000nit | اندازه ماژول: | 1000*240 میلی متر |
| ضخامت: | 3 میلی متر | شفافیت: | 65 ٪/70 ٪/80 ٪ |
| رتبه IP: | IP43 | وزن: | 3.5 کیلوگرم |
| برجسته کردن: | P8 adhesive transparent LED screen,transparent LED display 1000x240mm,UV resistant transparent LED panel,transparent LED display 1000x240mm,UV resistant transparent LED panel |
||
توضیحات محصول
P8 Adhesive Transparent LED Display 1000*240mm 80% High Transparency UV Resistance
Product Description
The P8 adhesive transparent LED display is paper-thin and lightweight, seamlessly adhering to curved surfaces like a sticker. The flexible substrate can be freely bent to fit the shaped space. Subvert the traditional installation mode, which can be quickly completed without bracket deployment, for architectural curtain walls, and window displays offer an invisible display technology.
Product Quick Details
- Adhesive film LED display for glass applications
- Lightweight at 3.5 kg per panel
- Easy and quick to install
- High brightness options of 1500-3000 nits
Features

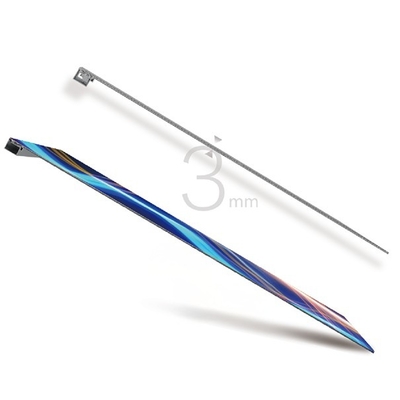

- Ultra thin: 3mm thickness makes it the thinnest led display in the market.

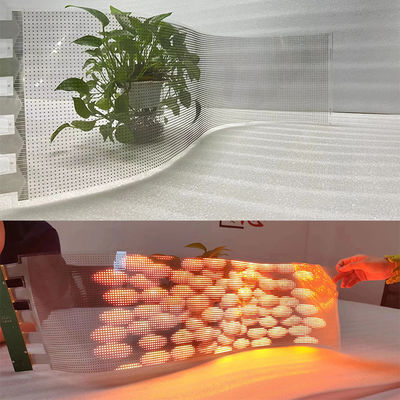

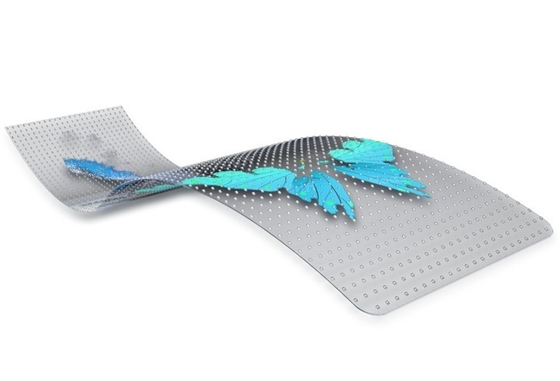

- Flexible: Bendable adhesive film led panel, can fit on curved glass wall.
- High transparency: Transparent film makes it up to 80% transparency rate. Best choice for store window glass.
- UV Resistance: Anti-UV material to avoid to become yellowish.
- Clipping size: The film panel is cuttable to meet different installation condition such irregular glass.
Technical Parameters
| Product Model | TP6 | TP8 | TP10 |
|---|---|---|---|
| Pixel Pitch | 6*6mm | 8*8mm | 10*10mm |
| LED Type | SMD2121 | ||
| Module Dimension(mm) | 1000*240*3mm | ||
| Weight | 3.5kg/panel | ||
| Brightness | 1500-3000nits | ||
| Transparency | 65% | 70% | 80% |
| Max/Avg Power(m²) | 800/280w/m² | ||
| IP Rating | IP43 | ||
Applications
- Building glass facade
- Shopping center glass wall
- Store window glass
- Brand flagship store
- Glass hall and corridor
FAQ
Q1: Can you give me a discount?
A1: Yes, based on wholesale service, we have better discount for bigger quantities. We will quote you the best price based on your order quantity.
Q2: Is your company a real manufacturer?
A2: Our company is a professional factory, located in Baoan district, Shenzhen city, China. You are the mostly welcomed to visit our factory anytime.
Q3: How is the quality of the product?
A3: Our products have been strictly tested high quality by QC before shipping to customers. We are adhering to the principle: "Quality and service are our first priority."
Q4: What pixel pitch should I choose on my display?
A4: It mainly depends on the viewing distance, the size of the display, the desired effect and the customer's budget.
Q5: What if I don't know how to maintain the screen?
A5: When you place your order, we will provide you with the operating manual and software, and we can help you remotely adjust the software through the team.
Q6: Can you provide free spare parts?
A6: A certain amount of spare parts will be provided for free, spare parts including module, power cable, signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
