P5.7 Sports Perimeter LED Display Adjustable Viewing Angle For Sports events
Détails sur le produit:
| Lieu d'origine: | CN |
| Nom de marque: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Numéro de modèle: | P5.7 |
Conditions de paiement et expédition:
| Quantité de commande min: | Négocier |
|---|---|
| Prix: | Negotiate |
| Détails d'emballage: | Étui en vol, coffret en contreplaqué |
| Délai de livraison: | 5-10 jours |
| Conditions de paiement: | T / T, L / C, D / A, D / P |
| Capacité d'approvisionnement: | 1100 mm / mois |
|
Détail Infomation |
|||
| Nom de production: | P5.7 Primètre sportif Affichage LED Angle de vision réglable pour les événements sportifs | Pas de pixel: | P5.7 |
|---|---|---|---|
| Grade IP: | IP65 | Matériau d'armoire: | Profil en aluminium |
| Luminosité: | > 6500 Nigts | Taille du module: | 480 * 320 mm |
| Taille de la cabine: | 960 * 960 * 106,5 mm | Poids de l'armoire: | 38 kg / armoire |
| Mettre en évidence: | P5.7 sports perimeter LED display,adjustable viewing angle LED display,sports event perimeter LED screen |
||
Description de produit

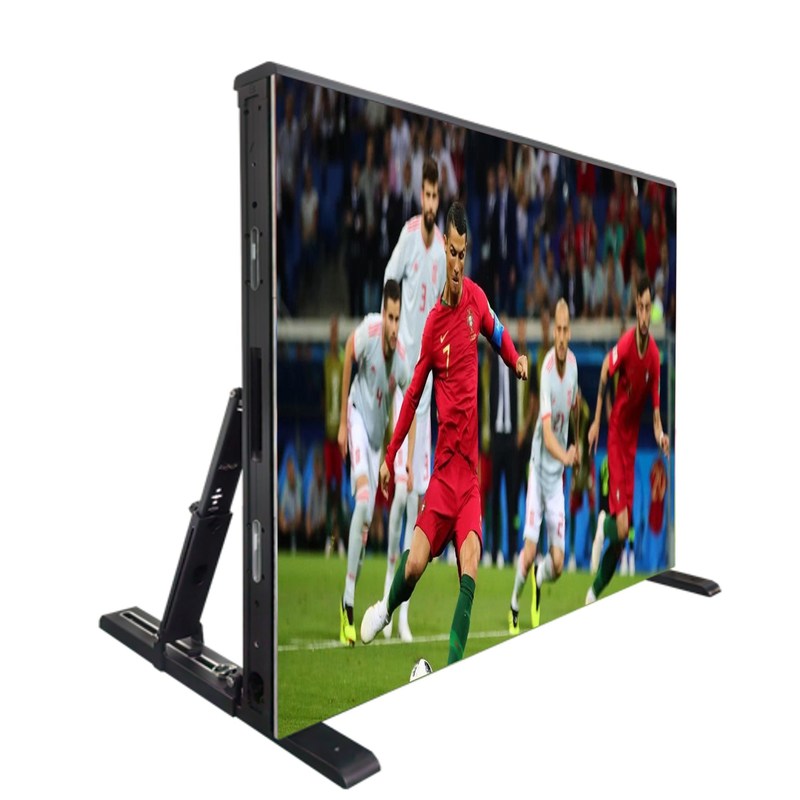

P5.7 Sports Perimeter LED Display with Adjustable Viewing Angle
The P5.7 Sports Perimeter LED Display features a lightweight and ultra-thin design for easy transport, installation, and space optimization. Its secure structure with advanced heat dissipation ensures long-term reliability, while quick assembly and disassembly enhance deployment flexibility. The adjustable stand adapts to various viewing angles, and high-contrast, high-brightness performance delivers vibrant, energy-efficient visuals with detailed HD content—perfect for sporting events, large gatherings, and training applications.
Key Features
- Lightweight design cabinets for easy handling and installation
- Anti-collision protection with module masks and rubber gaskets to prevent athlete injuries
- Top-tier image quality with stable operation and high pixel density
- Simple installation with spring screws and integrated power & signal cables
- Designed for severe outdoor environments and equipment shooting conditions
Technical Specifications
| Item | P5.7 |
|---|---|
| Pixel Pitch | 5.7mm |
| Module Size | 480*320mm |

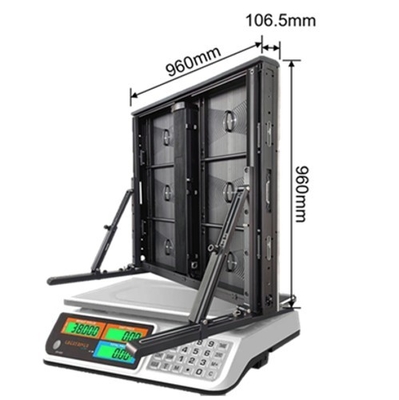

| Cabinet Size | 960*960*106.5mm |
| Working Voltage | 3.2/4.2V |
| Scan Mode | 1/7 |
| Cabinet Material | Aluminum Profile |
| Cabinet Weight | 38kg/cabinet |
| Brightness | >6500nits |
| Power Consumption | 650/228w/m² |
| Maintenance | Front/Rear Service |
| IP Rating | IP65 |
| Refresh Rate | ≥3840Hz |

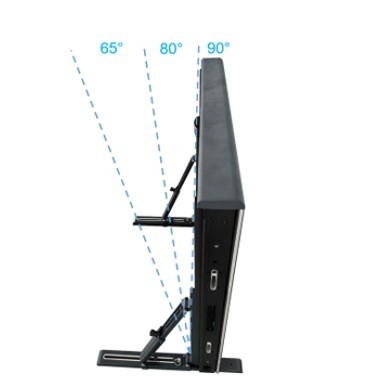

| Viewing Angle | H:140°; V:140° |
| Operational Temp | ﹣20~50℃ |
| Operational Humidity | 10%~90%RH |
Applications
The sport stadium LED screen series is designed for brand marketing during major sporting events like the World Cup. The displays effectively showcase company logos and advertisements from sponsors such as Coca-Cola and Sony.
Packing & Shipping
Our Sports Perimeter LED Displays are carefully packaged to ensure safe arrival at your location.
Frequently Asked Questions
Q1. Can I order a sample of the LED display?
A1: Yes, we welcome sample orders to test and check quality, available for either individual modules or complete screens.
Q2. What is the typical lead time?
A2: Orders under 100 square meters typically take 15 working days.
Q3. Is there a minimum order quantity?
A3: We have low MOQ requirements—1 square meter or even a single module for testing is acceptable.
Q4. What are your shipping methods and timelines?
A4: We primarily accept FOB terms but can arrange shipping agents. Sea freight typically takes 20-30 days plus customs clearance.
Q5. How does the ordering process work?
A5: The process involves: 1) Sharing your requirements, 2) Receiving our quotation, 3) Confirming design documents and placing deposit, 4) Production arrangement.
Q6. Can I add my company logo?
A6: Yes, please inform us before production and confirm the design based on our samples.
Q7. What information do you need to provide a quote?
A7: Please provide display dimensions, primary use, viewing distance, scene photos, and any special requirements.
Q8. What is your defective product policy?
A8: Our strict quality control keeps defective rates below 0.2%. During warranty, we replace small quantities with new modules. For larger issues, we repair or discuss solutions including recalls if needed.
