P2.5 Zirca-G Series Outdoor Fixed LED Display Wide Viewing Angle For Control Centers
Productdetails:
| Plaats van herkomst: | CN |
| Merknaam: | VW |
| Certificering: | CE, ROHS, EMC |
| Modelnummer: | P2.5 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | Onderhandelen |
|---|---|
| Prijs: | Negotiate |
| Verpakking Details: | multiplexkast |
| Levertijd: | 15 werkdagen |
| Betalingscondities: | T/t, l/c |
| Levering vermogen: | 2000m²/maand |
|
Gedetailleerde informatie |
|||
| Productnaam: | P2.5 Zirca-G-serie Vast LED-display voor buiten, brede kijkhoek voor controlecentra | Pixelveld: | 2,5 mm |
|---|---|---|---|
| Modulegrootte: | 320×160mm | Kabinetsgrootte: | 640×480×48mm |
| Kabinetgewicht: | 7 kg | Helderheid: | 500~900 nit |
| Onderhoud: | Voorkant | Installatietype: | Hijsen/monteren/wandophangen |
| Markeren: | P2.5 outdoor LED display,Zirca-G fixed LED screen,wide viewing angle LED display |
||
Productomschrijving

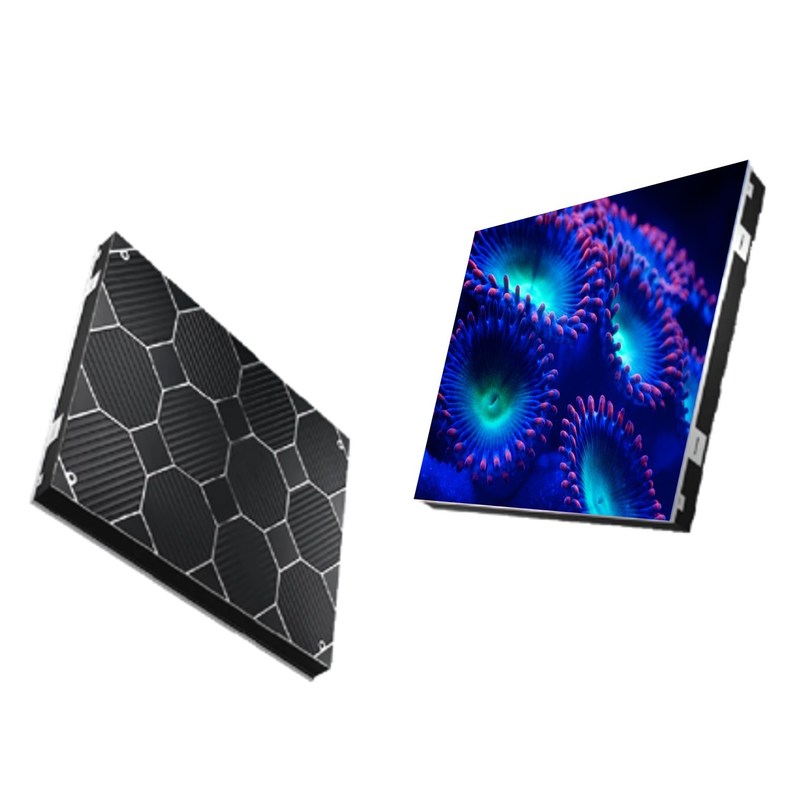

P2.5 Zirca-G Series Outdoor Fixed LED Display Wide Viewing Angle For Control Centers
The P2.5 Outdoor Fixed LED Display enables flexible front/rear installation and complete front maintenance using ultra-strong magnetic modules. With its standardized 640×480mm size for optimal cabinet compatibility, it provides high refresh rates, excellent grayscale performance at low brightness, outstanding contrast ratio, and consistently clear, realistic image quality.
Key Features
- Thin & Lightweight Design: The die-casting aluminum cabinet is designed to weigh 7 kgs/panel, providing greater convenience during installation and transportation.

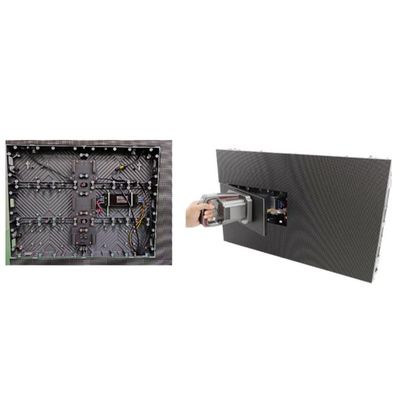

- Easy Installation & Maintenance: Supports front and rear installation, full front maintenance, and super magnetic design of the unit module.
- High Refresh & 5000:1 Contrast: High refresh rate, high grayscale at low lightness, and ultra-high contrast make the picture quality clear and realistic.
- Low Radiation & Ultra-Quiet & Wide Viewing Angle: Visual World offers vertical angles of 120° and horizontal viewing angles of 140°, allowing for a wide viewing range.

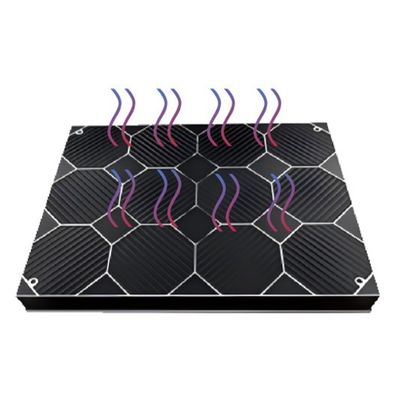

- Better Heat Dissipation: Better metal heat dissipation capability, low power consumption and longer lifetime. Using the latest technology, it can eliminate the phenomenon of LED light "caterpillars".
Technical Specifications
| Product Model | P2.5 |
|---|---|
| LED Type | SMD2121 |
| Pixel Pitch | 2.5mm |
| Module Resolution | 128×64 |
| Module Size | 320×160mm |
| Cabinet Resolution | 256×192 |

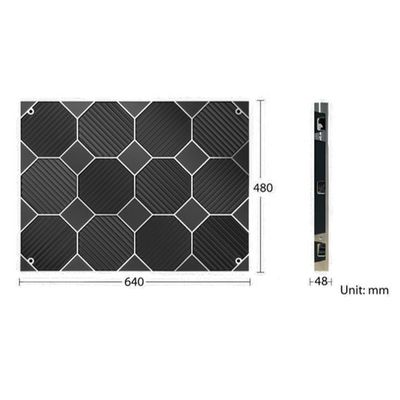

| Cabinet Size | 640×480×48mm |
| Pixel Density | 160,000dots/m² |
| Driving Mode | 1/32 |
| Cabinet Weight | 7Kg |
| Brightness | 500~900 nit |
| Viewing Angle | H140°/V120° |
| Highest Contrast | ≥5000:1 |
| Gray Scale | ≥14bit |
| Installation Type | Hoisting/mounting/wall hanging |
| Refresh Rate | ≥3840 |
| Input Voltage | AC:100V~240V(50~60Hz) |
| Maximum Power Consumption | 500W/m² |
| Average Power Consumption | 120W/m² |
| LED Lifespan | 100,000 hours |
| Operating Temperature | -10°C~+40°C |
| Operating Humidity | 10%~90%RH,no condensation |
*Reference information, different configurations, different parameters
Applications
- Control centers
- Broadcast studios
- Home theaters
- Museums
Frequently Asked Questions
Q1: Can you accept a sample order?
A1: Yes, we welcome sample orders so you can assess the quality and test the market before committing to bulk purchases.
Q2: Does there have any warranty?
A2: Yes, a two-year warranty for all products.
Q3: Can I customize it?
A3: Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
Q4: Is it OK to print my logo on the products?
A4: Yes, we can print your logo. Please inform us formally before production and confirm the design based on our sample.
Q5: Do you have any MOQ limit for LED display order?
A5: Low MOQ, 1 square meter or a module checking is available.
Q6: How can we guarantee quality?
A6: We prioritize quality at every stage of production. Our rigorous quality control processes include stringent component selection, advanced manufacturing techniques, and comprehensive testing. Before shipment, each LED display undergoes a meticulous final inspection to ensure it meets our exacting standards.
Q7: To order a display, what kind of information do I have to offer you?
A7: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
Wilt u meer details over dit product weten
