P1.53 Zirca-G Series Outdoor Fixed LED Display Easy Installation & Maintenance
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, EMC |
| Model Number: | P1.53 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 2000sqm/month |
|
Detail Information |
|||
| Product Name: | P1.53 Zirca-G Series Outdoor Fixed LED Display Easy Installation & Maintenance | Pixel Pitch: | 1.53mm |
|---|---|---|---|
| Module Size: | 320×160mm | Cabinet Size: | 640×480×48mm |
| Cabinet Weight: | 7kg | Brightness: | 500~900 Nit |
| Maintenance: | Front | Installation Type: | Hoisting/mounting/wall Hanging |
| Highlight: | P1.53 outdoor LED display,Zirca-G fixed LED screen,easy install LED display |
||
Product Description
P1.53 Zirca-G Series Outdoor Fixed LED Display Easy Installation & Maintenance
The P1.53 Outdoor Fixed LED Display facilitates flexible front/rear installation and comprehensive front maintenance through its ultra-strong magnetic unit modules. Featuring a standardized 640×480mm size for excellent cabinet compatibility, it delivers high refresh rates, superior grayscale performance at low brightness, exceptional contrast ratio, and consistently clear, lifelike image reproduction.
Key Features

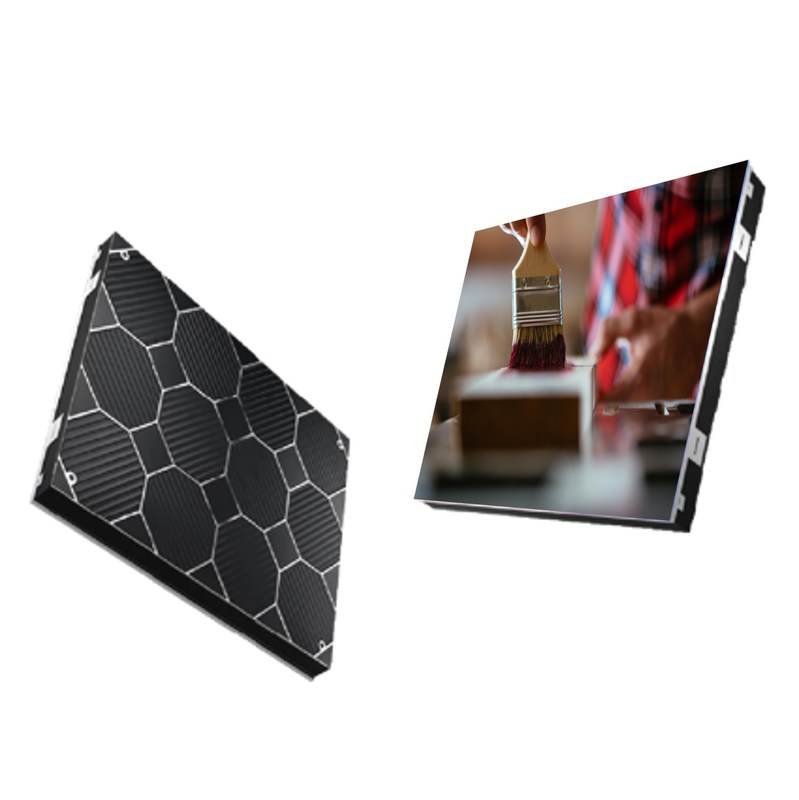

- Thin & Lightweight Design: The die-casting aluminum cabinet is designed to weigh 7 kgs/panel, providing greater convenience during installation and transportation.

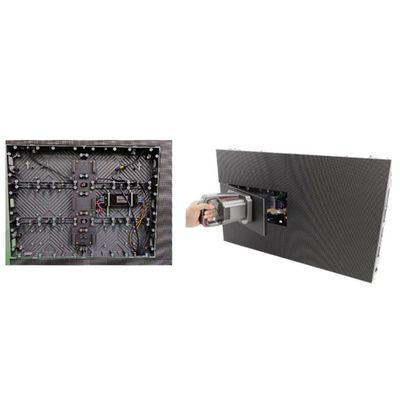

- Easy Installation & Maintenance: Supports front and rear installation, full front maintenance, and super magnetic design of the unit module.
- High Refresh & 5000:1 Contrast: High refresh rate, high grayscale at low lightness, and ultra-high contrast make the picture quality clear and realistic.
- Low Radiation & Ultra-Quiet & Wide Viewing Angle: Visual World offers vertical angles of 120° and horizontal viewing angles of 140°, allowing for a wide viewing range.

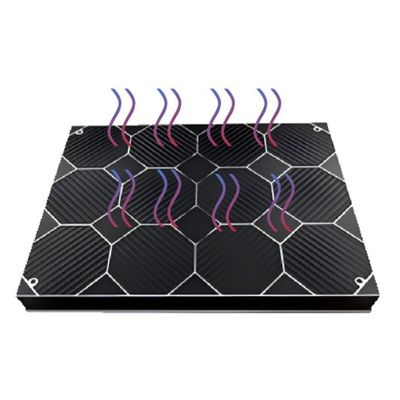

- Better Heat Dissipation: Better metal heat dissipation capability, low power consumption and longer lifetime. Using the latest technology, it can eliminate the phenomenon of LED light "caterpillars".
Technical Specifications
| Product Model | P1.53 |
| LED Type | SMD1010/1212 |
| Pixel Pitch | 1.53mm |
| Module Resolution | 208×104 |
| Module Size | 320×160mm |
| Cabinet Resolution | 416×312 |

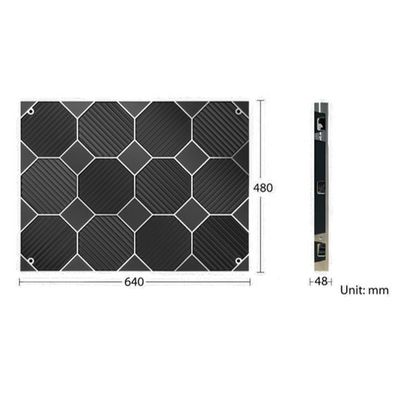

| Cabinet Size | 640×480×48mm |
| Pixel Density | 422,753dots/m² |
| Driving Mode | 1/52 |
| Cabinet Weight | 7Kg |
| Brightness | 500~900 nit |
| Viewing Angle | H140°/V120° |
| Highest Contrast | ≥5000:1 |
| Gray Scale | ≥14bit |
| Installation Type | Hoisting/mounting/wall hanging |
| Refresh Rate | ≥3840 |
| Input Voltage | AC:100V~240V(50~60Hz) |
| Maximum Power Consumption | 500W/m² |
| Average Power Consumption | 120W/m² |
| LED Lifespan | 100,000 hours |
| Operating Temperature | -10°C~+40°C |
| Operating Humidity | 10%~90%RH,no condensation |
*Reference information, different configurations, different parameters
Applications
- Control centers
- Broadcast studios
- Home theaters
- Museums
Frequently Asked Questions
Q1: Can you accept a sample order?
A1: Yes, we encourage sample orders to test and evaluate the quality, whether for a module or a complete screen. Mixed samples are acceptable.
Q2: Does there have any warranty?
A2: Yes, a two-year warranty for all products.
Q3: Can I customize it?
A3: Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
Q4: Is it OK to print my logo on the products?
A4: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you have any MOQ limit for LED display order?
A5: There is no strict MOQ, and we offer competitive pricing for bulk orders.
Q6: How can we guarantee quality?
A6: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q7: To order a display, what kind of information do I have to offer you?
A7: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
