P10.4 Outdoor Fixed LED Display 30kg/Cabinet IP65 For Advertising Billboard
Produktdetails:
| Herkunftsort: | CN |
| Markenname: | VW |
| Zertifizierung: | CE, ROHS, EMC |
| Modellnummer: | P10.4 |
Zahlung und Versand AGB:
| Min Bestellmenge: | Verhandeln |
|---|---|
| Preis: | Negotiate |
| Verpackung Informationen: | Sperrholzfall |
| Lieferzeit: | 15 Arbeitstage |
| Zahlungsbedingungen: | T/t, l/c |
| Versorgungsmaterial-Fähigkeit: | 2000 m²/Monat |
|
Detailinformationen |
|||
| Produktname: | P10.4 Outdoor feste LED -Anzeige 30 kg/Schrank IP65 für Werbung für Werbetafel | Pixel -Tonhöhe: | 10.417 mm |
|---|---|---|---|
| Kabinettsgewicht: | 30 kg/Schrank | Modulgröße: | 500*250mm |
| Kabinettsdimension: | 1000*1000 mm/1000*500 mm/1000*750 mm/1500*1000 mm/1500*500 mm | IP -Bewertung: | IP65 |
| Helligkeit: | 6000/10000nits | Schrankmaterial: | Aluminiumprofil |
| Hervorheben: | P10.4 outdoor LED display,IP65 waterproof LED screen,30kg cabinet LED billboard |
||
Produkt-Beschreibung

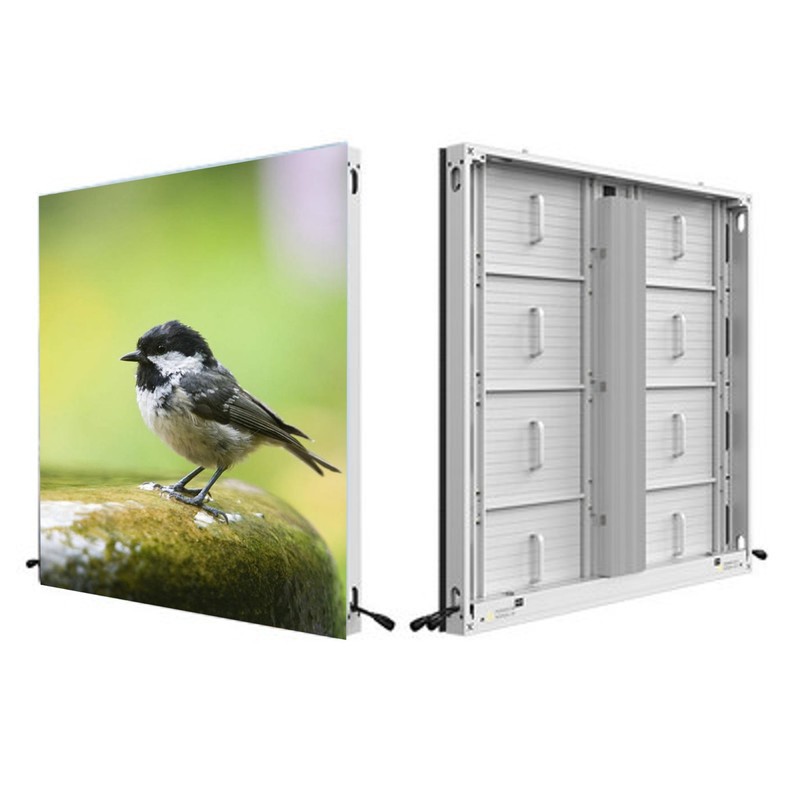

P10.4 Outdoor Fixed LED Display 30kg/Cabinet IP65 For Advertising Billboard
Product Description
The P10.4 Outdoor Fixed LED Display guarantees reliability and high performance through its robust installation design, utilizing a hub connection to minimize failure rates and a 500 x 250mm aluminum backplate to resist deformation while improving heat dissipation. It supports both front and rear maintenance, incorporates an IP65 waterproof rating, and features a 2+1 power connector to prevent overheating. Optional smart modules with common cathode or anode configurations provide additional flexibility for diverse application requirements.
Features
- Waterproof: Durable, waterproof, fast heat dissipation aluminum cabinet with IP65 protection level for outdoor use.
- Front & Rear service: Can be installed against the wall, with full front and rear maintenance design, convenient installation and saving installation space.
- Better Heat Dissipation: After one hour of white balance illumination, the aluminum base demonstrates superior heat dissipation, registering a temperature 10 degrees lower than a plastic base.
- Wide viewing angles: Wide viewing angles horizontal 140°, vertical 140° allows audience to watch the screen clearly from distances.
- 2+1 Power: The 2+1 power connector design features a built-in anti-reverse insertion mechanism to avoid damage from incorrect connections, precisely meets current load requirements for stable power delivery, and ensures safe, reliable module operation even under fluctuating electrical conditions.
Technical Parameters
| Item | P10.4 |
|---|---|
| Pixel Pitch | 10.417mm |
| Module Size | 500*250mm |
| Cabinet Dimension | 1000*1000*90mm/1000*500*90mm/1000*750*90mm/1500*1000*90mm/1500*500*90mm |
| LED Type | SMD2727 |
| Scan Mode | 1/2 |
| Cabinet Material | Aluminum Profile |
| Cabinet Weight | 30kg/cabinet |
| Brightness | 6000/10000nits |
| Power Consumption | 600/210w/m2 |
| Maintenance | Front/Rear Service |
| IP Rating | IP65 |
| Refresh Rate | ≥3840Hz |
| Viewing Angle | H:140°; V:140° |
| Operational Temp | ﹣20~50℃ |
| Operational Humidity | 10%~90%RH |
Application
- Outdoor creative modeling
- Building entrance
- Park entrance
- Swimming pool
- Advertising billboard
- Playing field
- Outdoor activity area
- Roadside poster
- Building exterior wall
FAQ
Q1: Are you a factory or trading company?
A1: 100% factory. We have more than 10 years of manufacturing experience. OEM & ODM order is warmly welcomed.
Q2: Why purchase from Visual World?
A2: Stable and reliable quality, efficient and professional customer service, competitive factory price, fast delivery time.
Q3: What's your delivery time?
A3: 7-15 days according to order quantity and season.
Q4: Any certificate?
A4: Our products have Patent no,CE and ROHS certification, please contact us if you need other certifications.
Q5: What is the payment term?
A5: We accept T/T, Western Union, PayPal, Credit card etc.
Q6: How long is the warranty?
A6: One year, two years, three years warranty or life long after service. Normal warranty 1 year, any special requests please contact us.
Q7: To order a display, what kind of information do I have to offer you?
A7: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
