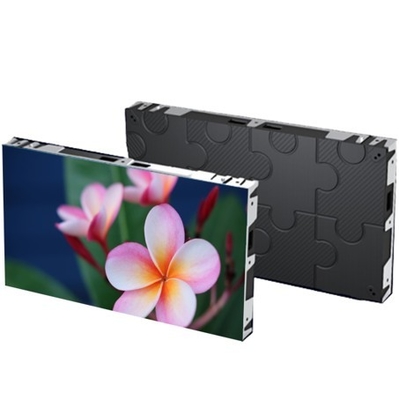

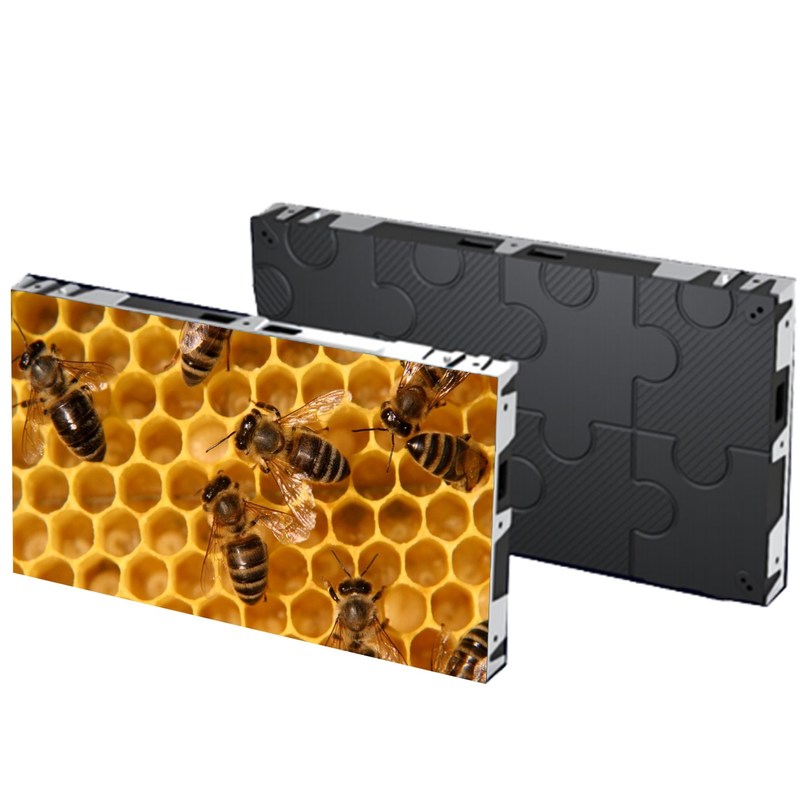

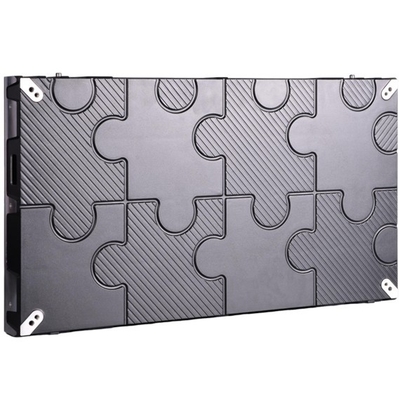

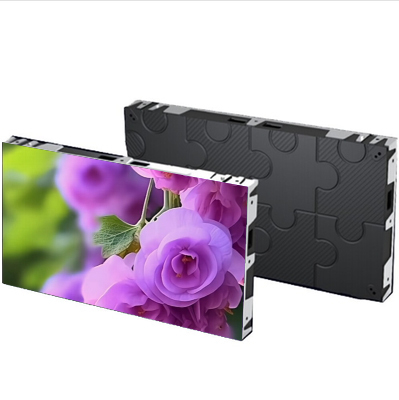

P1.25 Small Pixel Pitch LED Display >3840Hz For High-end Commercial Display
Détails sur le produit:
| Lieu d'origine: | CN |
| Nom de marque: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Numéro de modèle: | P1.25 |
Conditions de paiement et expédition:
| Quantité de commande min: | Négocier |
|---|---|
| Prix: | Negotiate |
| Détails d'emballage: | Carie de contreplaqué, boîte à exportation de carton |
| Délai de livraison: | 12 jours de travail |
| Conditions de paiement: | T / t |
| Capacité d'approvisionnement: | 5000 m² / mois |
|
Détail Infomation |
|||
| Nom de produit: | P1.25 Affichage LED de pitch à petits pixels> 3840Hz pour l'affichage commercial haut de gamm | Pas de pixel: | 1,25 mm |
|---|---|---|---|
| Matériau d'armoire: | Aliuminum en cas de détérioration | Taille de la cabine: | 600x337,5 mm |
| Entretien: | Service frontal | Luminosité: | 600 nombres |
| Poids de l'armoire:: | 5,5 kg | Note IP: | F: IP30, R: IP45 |
| Mettre en évidence: | P1.25 LED display high refresh rate,small pixel pitch LED commercial display,fine pixel pitch LED with warranty |
||
Description de produit
P1.25 Small Pixel Pitch LED Display >3840Hz For High-end Commercial Display
The P1.25 Small Pixel Pitch LED Display delivers outstanding visual performance with detailed imagery and vibrant colors. Its optimized 16:9 aspect ratio ensures wide viewing angles and comfortable immersion for all audiences. The integrated control system simplifies operation, while the full front-access maintenance design enables effortless servicing—keeping the display at peak performance with minimal downtime.
Key Features
- Full flip-chip COB process with protection technologies including anti-collision, waterproofing, moisture resistance, and salt spray resistance
- 3D ink printing technology enhances contrast by 20% and lowers display brightness requirements
- Includes LCD status display panel for real-time monitoring of cabinet operations
- HDI multi-layer circuit board design ensures excellent color uniformity and even temperature distribution
- Energy-efficient common cathode chip delivers higher performance with grayscale levels up to 16-bit
Technical Specifications
| Product Model | FP0.9 | FP1.25 | FP1.56 | FP1.87 |
|---|---|---|---|---|
| Pixel Pitch | 0.9375mm | 1.25mm | 1.5625mm | 1.875mm |
| LED Type | 4 in 1 LED | SMD1212 | SMD1212 | SMD1515 |
| Cabinet Dimension | 600x337.5x58 mm | 600x337.5x58mm | 600x337.5x58mm | 600x337.5x58mm |
| Module Size | 300x168.75 mm | 300x168.75 mm | 300x168.75 mm | 300x168.75 mm |
| Cabinet Weight | 5.5 kg | 5.5 kg | 5.5 kg | 5.5 kg |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Brightness | 400 nits | 600 nits | 600 nits | 600 nits |
| Refresh Rate | >3840 Hz | >3840 Hz | >3840 Hz | >3840 Hz |
| Viewing Angle | H:140°; V:140° | H:140°; V:140° | H:140°; V:140° | H:140°; V:140° |
Applications
- Digital Signage systems
- Chain stores
- Billboards
- Perimeter LED posters
- Arena displays
Support and Service
- Pre-sales: Detailed production instructions and professional installation guidance
- Sales: Customized solutions, visual designs, and project showcases
- After-sales: Two-year warranty, professional maintenance team, timely assistance, spare parts provision, free training, and continuous software improvement
Frequently Asked Questions
Q1: Can you accept sample orders?
A1: Yes, sample orders are acceptable for quality checks and market testing.
Q2: What LED screen sizes are available?
A2: Screen sizes can be customized based on your requirements.
Q3: What is the warranty period?
A3: All products come with a two-year warranty.
Q4: How is product quality guaranteed?
A4: We provide pre-production samples before mass production and conduct final inspections before shipment. We use genuine lamp beads, silver-containing solder paste, pure copper cords, and short cables to ensure quality.
Q5: How quickly can you provide technical support?
A5: We provide professional technical support within 24 hours of receiving notification.
Q6: What information is needed to order a display?
A6: Please provide the display dimensions, primary use, viewing distance, scene photos, and any special requirements for a detailed quotation.
