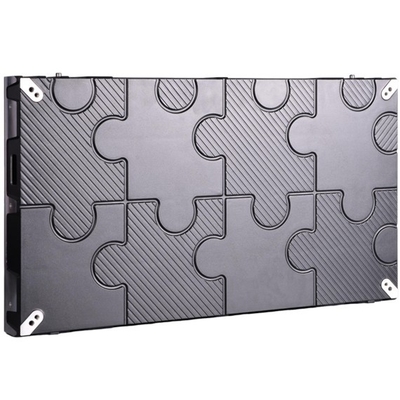

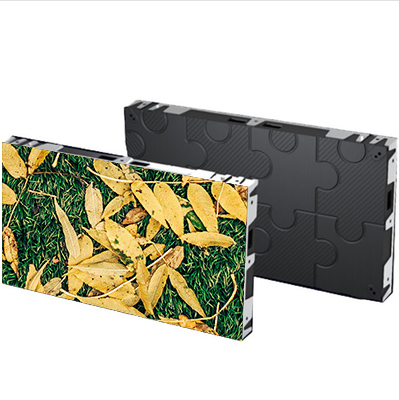

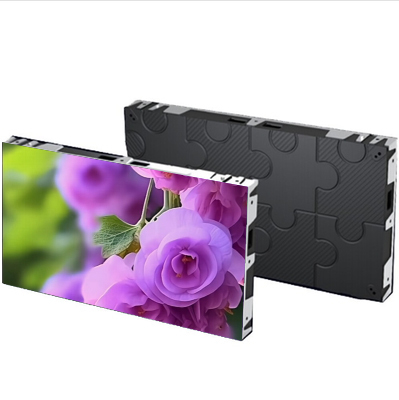

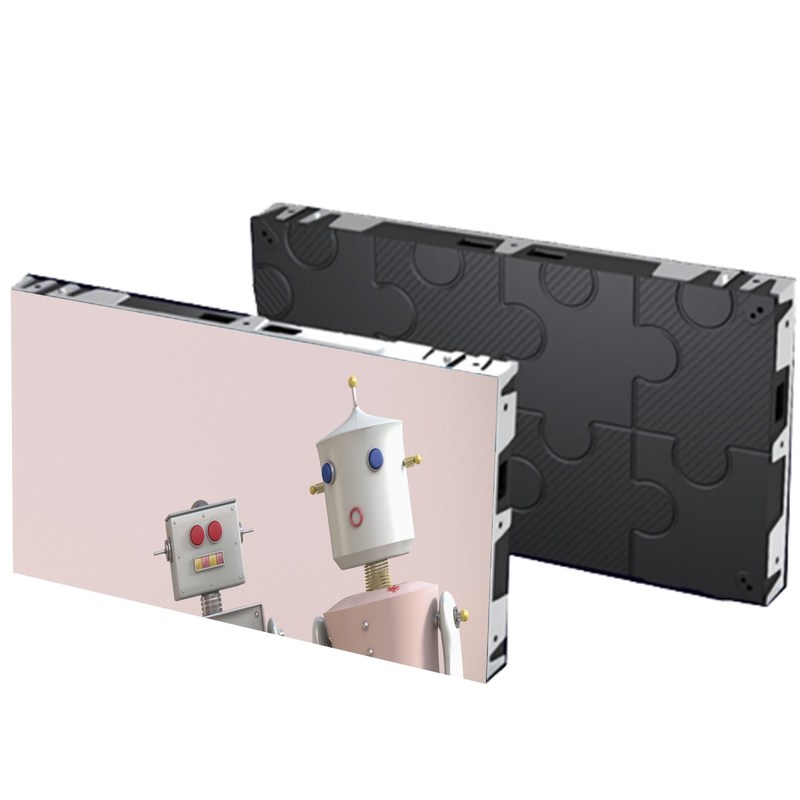

P1.56 Small Pixel Pitch LED Display With Integrated Control Box For Indoor Use
Détails sur le produit:
| Lieu d'origine: | CN |
| Nom de marque: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Numéro de modèle: | P1.56 |
Conditions de paiement et expédition:
| Quantité de commande min: | Négocier |
|---|---|
| Prix: | Negotiate |
| Détails d'emballage: | Carie de contreplaqué, boîte à exportation de carton |
| Délai de livraison: | 12 jours de travail |
| Conditions de paiement: | T / t |
| Capacité d'approvisionnement: | 5000 m² / mois |
|
Détail Infomation |
|||
| Nom de produit: | P1.56 Affichage LED de tangage à petits pixels avec boîte de commande intégrée pour une utilisation | Pas de pixel: | 1,5625 mm |
|---|---|---|---|
| Matériau d'armoire: | Aliuminum en cas de détérioration | Taille de la cabine: | 600x337,5 mm |
| Entretien: | Service frontal | Luminosité: | 600 nombres |
| Poids de l'armoire:: | 5,5 kg | Note IP: | F: IP30, R: IP45 |
| Mettre en évidence: | P1.56 indoor LED display,small pixel pitch LED screen,integrated control box LED display |
||
Description de produit
P1.56 Small Pixel Pitch LED Display With Integrated Control Box For Indoor Use
The P1.56 Small Pixel Pitch LED Display delivers exceptional visual performance with ultra-fine detail and vibrant color reproduction. Its optimized 16:9 aspect ratio provides wide viewing angles and comfortable immersion for diverse audiences. The integrated control system ensures user-friendly operation, while the full front-access maintenance design enables effortless servicing--maintaining peak display performance with minimal downtime.
Key Features
- The full flip-chip COB process includes protection technologies such as anti-collision, waterproofing, moisture resistance, and salt spray resistance, preventing LED screens from blinding or experiencing failures due to dampness in high-humidity and salt-spray conditions.
- The module features 3D ink printing technology, enhancing contrast by 20% and lowering display brightness requirements. It supports an LCD status display panel for intuitive real-time monitoring of cabinet operations.
- The module's PCB utilizes an HDI multi-layer circuit board design, ensuring good color uniformity and even temperature distribution.
- The entire series incorporates Sunrise's energy-efficient common cathode chip, delivering higher performance with grayscale levels up to 16-bit.
Technical Specifications
| Product Model | FP0.9 | FP1.25 | FP1.56 | FP1.87 |
|---|---|---|---|---|
| Pixel Pitch | 0.9375mm | 1.25mm | 1.5625mm | 1.875mm |
| LED Type | 4 in 1 LED | SMD1212 | SMD1212 | SMD1515 |
| Cabinet Dimension | 600x337.5x58 mm | 600x337.5x58mm | 600x337.5x58mm | 600x337.5x58mm |
| Module Size | 300x168.75 mm | 300x168.75 mm | 300x168.75 mm | 300x168.75 mm |
| Cabinet Weight | 5.5 kg | 5.5 kg | 5.5 kg | 5.5 kg |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type | 1/46 | 1/45 | 1/48 | 1/45 |
| Brightness | 400 nits | 600 nits | 600 nits | 600 nits |
| Max/Avg Power | 450/135 W/m² | 450/135 W/m² | 450/135 W/m² | 450/135 W/m² |
| Maintenance | Front service | Front service | Front service | Front service |
| Environment | Indoor Use | Indoor Use | Indoor Use | Indoor Use |
| IP Rating | F: IP30, R: IP45 | F: IP30, R: IP45 | F: IP30, R: IP45 | F: IP30, R: IP45 |
| Refresh Rate | >3840 Hz | >3840 Hz | >3840 Hz | >3840 Hz |
| Installation Type | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging |
| Gray Scale | 14 bit | 14 bit | 14 bit | 14 bit |
| Viewing Angle | H:140°; V:140° | H:140°; V:140° | H:140°; V:140° | H:140°; V:140° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
Typical Applications
- Digital Signage system
- Chain store
- Billboard
- Perimeter LED poster
- Arena display, etc.
Support and Service
Full-service support throughout the process.
- Pre-sales: We offer detailed production instructions and professional installation guidance.
- Sales: We provide customized solutions, visual designs, and project showcases.
- After-sales: Two-year warranty, professional maintenance team, timely assistance, spare parts provision, free training, logistics tracking, and continuous software improvement.
Frequently Asked Questions
Q1: Can you accept some sample orders?
A1: Yes, the sample order is acceptable for quality check and market test.
Q2: What LED screen size you can do?
A2: Screen size can be customized based on your demand.
Q3: Does there have any warranty?
A3: A two-year warranty for all products.
Q4: How to guarantee product quality?
A4: We prioritize quality at every stage of production. Our rigorous quality control processes include stringent component selection, advanced manufacturing techniques, and comprehensive testing. Before shipment, each LED floor display undergoes a meticulous final inspection to ensure it meets our exacting standards.
Q5: How fast can you provide after-sale technical support after encountering product problems?
A5: We promise to provide professional after-sale technical support within 24 hours after receiving the customer's notice.
