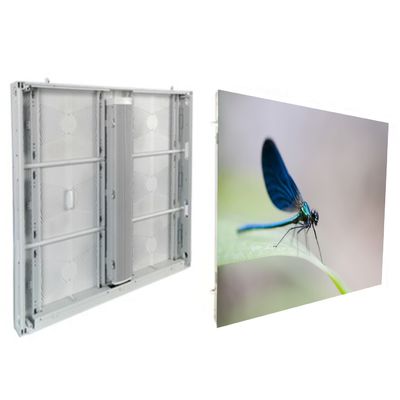

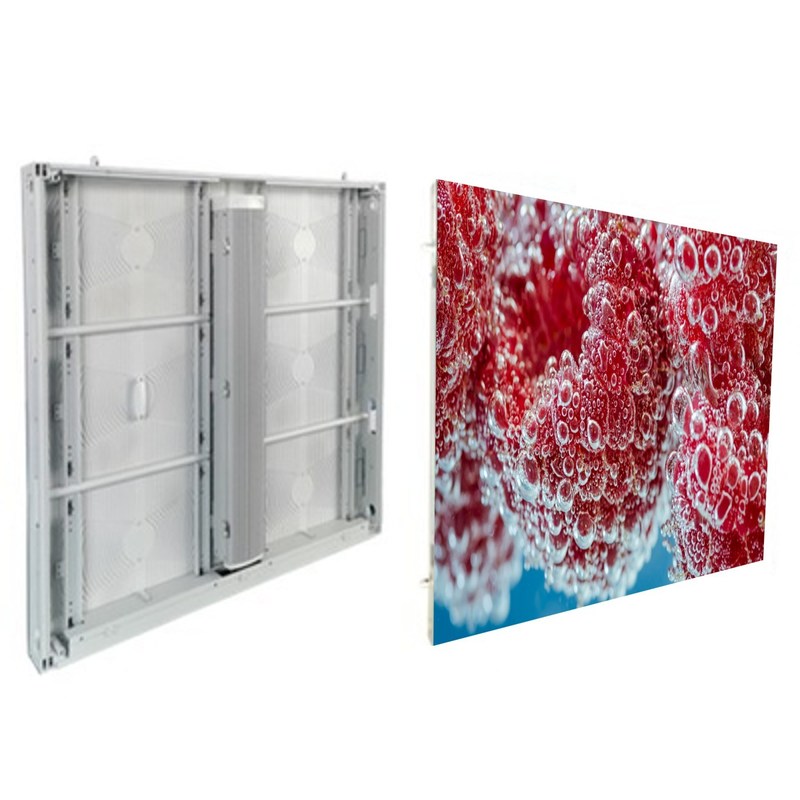

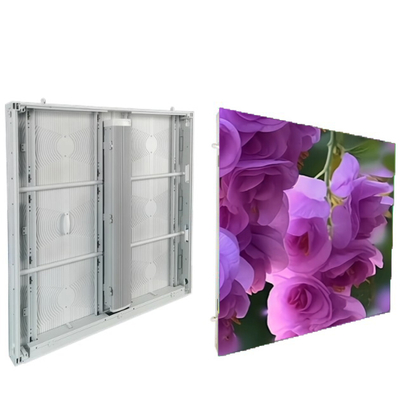

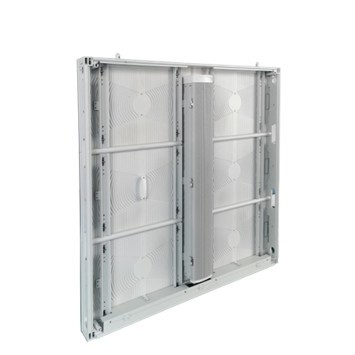

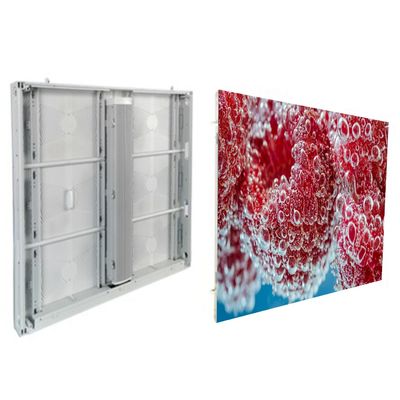

P10 Outdoor Fixed LED Display IP65 960*960mm Cabinet For Advertising Billboard
Détails sur le produit:
| Lieu d'origine: | CN |
| Nom de marque: | VW |
| Certification: | CE, ROHS, EMC |
| Numéro de modèle: | P10 |
Conditions de paiement et expédition:
| Quantité de commande min: | Négocier |
|---|---|
| Prix: | Negotiate |
| Détails d'emballage: | contreplaqué |
| Délai de livraison: | 15 jours de travail |
| Conditions de paiement: | T / t, l / c |
| Capacité d'approvisionnement: | 2000 m² / mois |
|
Détail Infomation |
|||
| Nom de produit: | Affichage LED fixe extérieur P10 IP65 960 * 960 mm Cabinet pour la publicité d'affichage | Pas de pixel: | P10 |
|---|---|---|---|
| Taille du module: | 480 * 320 mm | Dimension de l'armoire: | 960x960x77mm |
| Poids de l'armoire: | 28 kg | Entretien: | Service avant / arrière |
| Note IP: | IP65 | Luminosité: | > 6500 Nigts |
| Mettre en évidence: | P10 outdoor LED display,IP65 waterproof LED screen,960x960mm fixed LED cabinet |
||
Description de produit
P10 Outdoor Fixed LED Display IP65 960*960mm Cabinet For Advertising Billboard
The P10 Outdoor Fixed LED Display complies with TUV 5VB fireproof certification and integrates an aluminum chassis with IP65 multi-layer waterproof protection for dual safety assurance. Its all-aluminum dense heat sink and partial voltage power supply ensure low-temperature operation and prolonged durability. The hard-wired structure guarantees physical stability, while the slim 77mm thickness and lightweight 32kg/m² design facilitate wall mounting and front/back maintenance. The module's left/right interchangeable feature further minimizes operational and maintenance expenses.
Features
- Waterproof: Durable, waterproof, fast heat dissipation aluminum cabinet with IP65 protection level for outdoor using.
- Front & Rear service: Can be installed against the wall, with full front and rear maintenance design, convenient installation and saving installation space.
- High brightness: Customized module PCB and designated power supply make it up to 6500nits brightness.
- Wide viewing angles: Wide viewing angles horizontal 140°, vertical 140° allows audience to watch the screen clearly from distances.
- Quick installation: Simple internal cables connection and positioning pins, quick and easy installation.
Technical Parameters
| Item | P5.7 | P6.67 | P8 | P10 |
|---|---|---|---|---|
| Pixel Pitch | 5.7mm | 6.67mm | 8mm | 10mm |
| Module Size | 480*320mm | |||
| Cabinet Size | 960*960*77mm | |||
| Working Voltage | 3.2/4.2V | |||
| Scan Mode | 1/7 | 1/6 | 1/4 | 1/2 |
| Cabinet Material | Aluminum Profile | |||
| Cabinet Weight | 28kg/cabinet | |||
| Brightness | >6500nits | |||
| Power Consumption | 650/228w/m2 | 540/2189w/m2 | 650/228w/m2 | 650/228w/m2 |
| Maintenance | Front/Rear Service | |||
| IP Rating | IP65 | |||
| Refresh Rate | ≥3840Hz | |||
| Viewing Angle | H:140°; V:140° | |||
| Operational Temp | ﹣20~50℃ | |||
| Operational Humidity | 10%~90%RH | |||
Application
- Outdoor creative modeling
- Building entrance
- Park entrance
- Swimming pool
- Advertising billboard
- Playing field
- Outdoor activity area
- Roadside poster
- Building exterior wall
Frequently Asked Questions
Q1: Are you a factory or trading company?
A1: 100% factory. We have more than 10 years of manufacturing experience. OEM & ODM order is warmly welcomed.
Q2: Why purchase from Visual World?
A2: Stable and reliable quality, efficient and professional customer service, competitive factory price, fast delivery time.
Q3: What's your delivery time?
A3: 7-15 days according to order quantity and season.
Q4: Do you have any MOQ limit for LED display order?
A4: Low MOQ, 1 square meter or a module checking is available.
Q5: What is the payment term?
A5: We accept T/T, Western Union, PayPal, Credit card etc.
Q6: How long is the warranty?
A6: One year, two years, three years warranty or life long after service. Normal warranty 1 year, any special requests please contact us.
Q7: To order a display, what kind of information do I have to offer you?
A7: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
